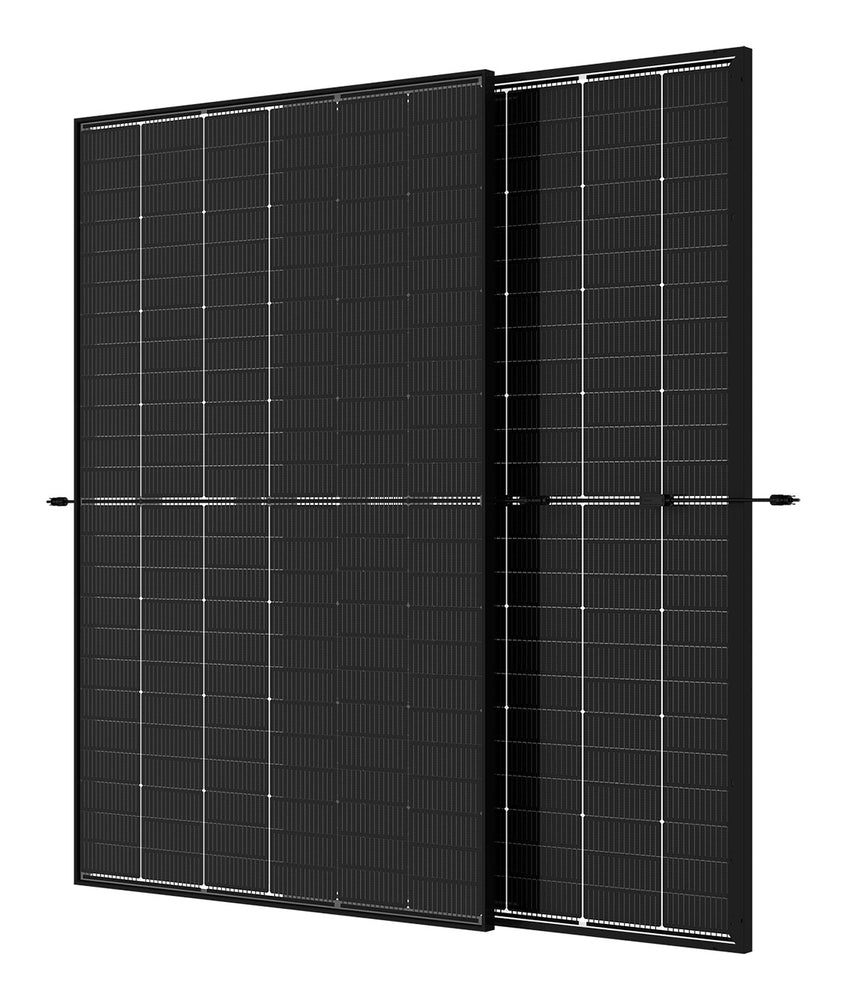

Trina Vertex S+ TSM-440NEG9RC.27 bifacial dual glass solar panel, front and rear view

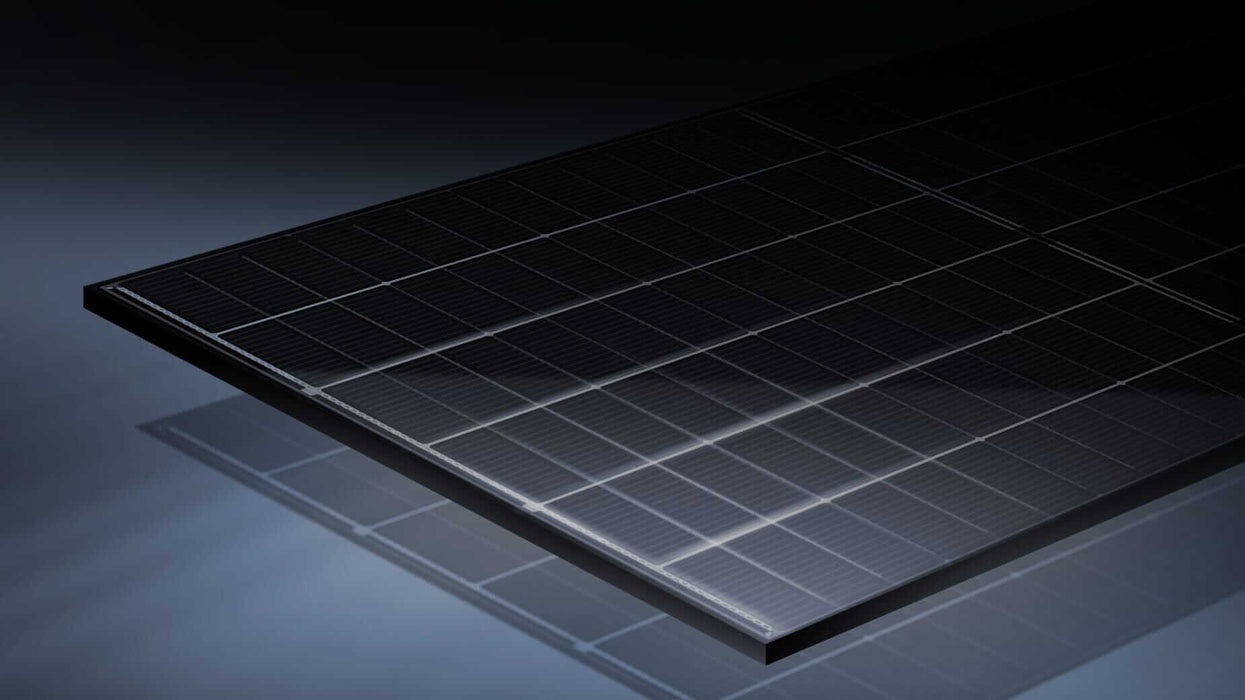

Trina Vertex S+ NEG9RC.27 solar panel corner showing the black frame

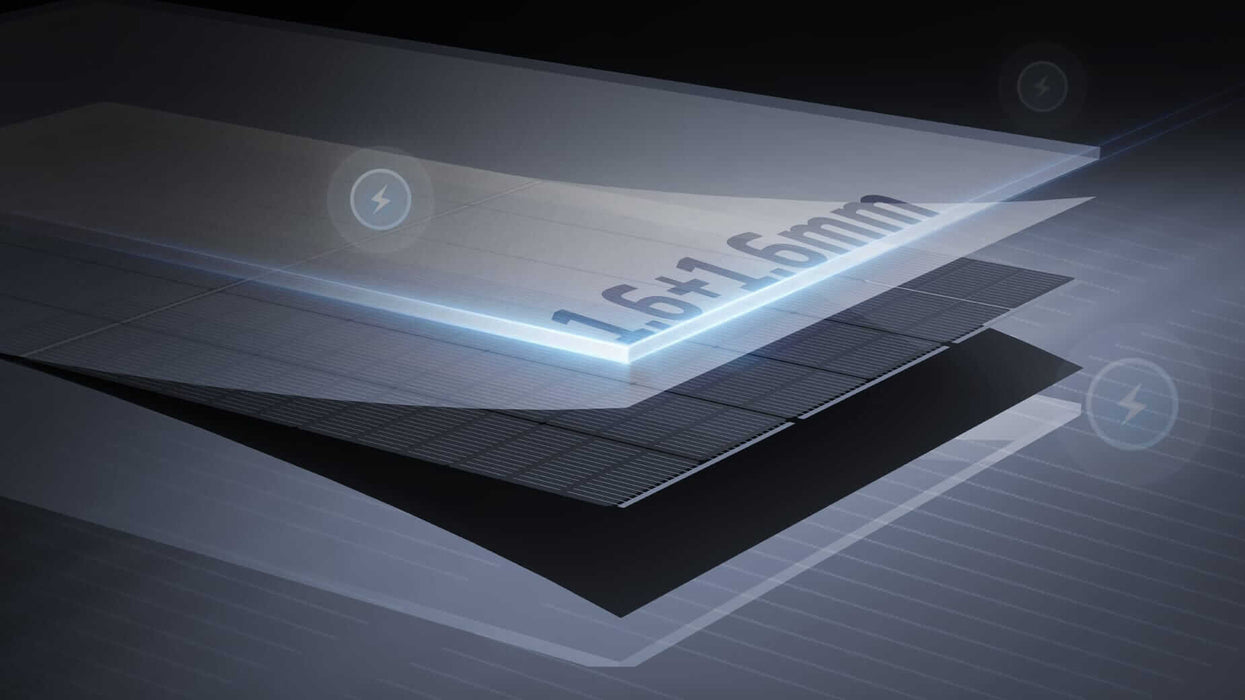

Trina Vertex S+ dual glass construction with 1.6mm front and rear glass

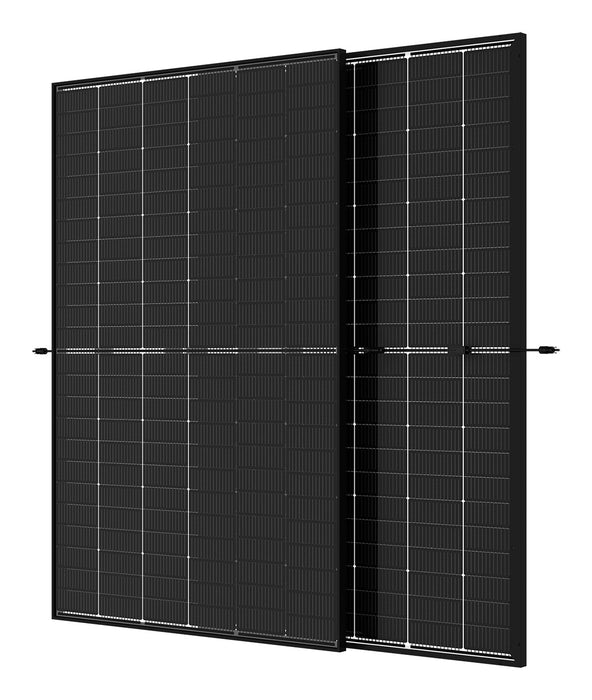

Trina Vertex S+ TSM-440NEG9RC.27 bifacial dual glass solar panel, front and rear view

Trina TSM-440NEG9RC.27 440W Bifacial Solar Panel Black

SKU 20684 by TRINA Solar Panel

The Trina Vertex S+ TSM-440NEG9RC.27 is a 440W bifacial dual glass solar panel built on N-type i-TOPCon cells, with a black 30mm frame and transparent rear glass. It reaches 22.0% module efficiency and can also generate from light reaching the rear of the panel. This version is supplied with MC4 EVO2 connectors and landscape-length cables.

Key specifications

  • Maximum power: 440W (0 to +5W power tolerance), module efficiency 22.0%
  • Cells: 144 N-type i-TOPCon monocrystalline cells
  • Construction: bifacial dual glass, 1.6mm AR-coated heat-strengthened front glass and 1.6mm heat-strengthened rear glass, bifaciality 80 ± 5%
  • Frame: 30mm black anodised aluminium alloy
  • Dimensions: 1762 x 1134 x 30mm, weight 21.0kg
  • Electrical (STC): Voc 52.2V, Isc 10.67A, Vmpp 44.0V, Impp 10.01A, maximum system voltage 1500V DC
  • Temperature coefficient of Pmax: -0.29%/°C
  • Junction box and cables: IP68 junction box, 4.0mm² PV cable, landscape cable length 1100/1100mm, MC4 EVO2 connectors
  • Mechanical load: 5400Pa front and 4000Pa rear (test loads)
  • Warranty: up to 25-year product warranty and 30-year power warranty, 1% first-year and 0.4% annual degradation
  • Certifications: IEC 61215, IEC 61730, IEC 61701, IEC 62716
  • Model: TSM-440NEG9RC.27

Suits

Residential and commercial rooftop arrays, including landscape layouts, where a black-framed bifacial panel is wanted; Trina designs the module to be compatible with mainstream inverters, optimisers and mounting systems.

Datasheet (PDF)
Dimensions and packing
1762 x 1134 x 30 mm
21kg
Manufacturer SKU
TSM-440NEG9RC.27
