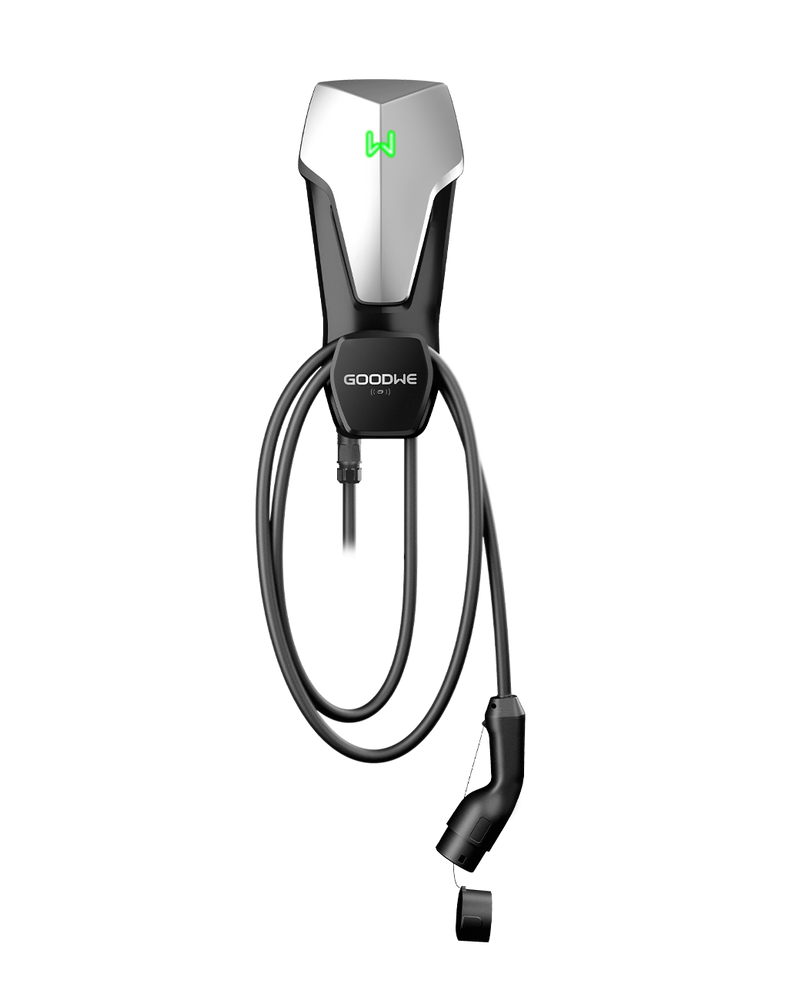

Goodwe GW7K-HCA-20 7kW single phase EV charger with tethered Type 2 cable, front view

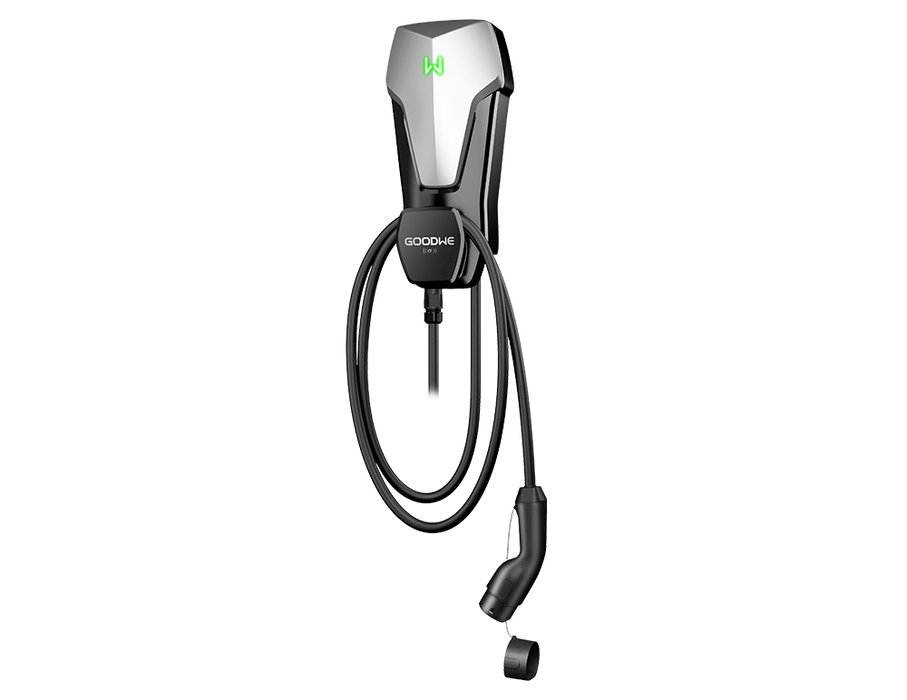

Goodwe GW7K-HCA-20 EV charger, angled view with Type 2 connector

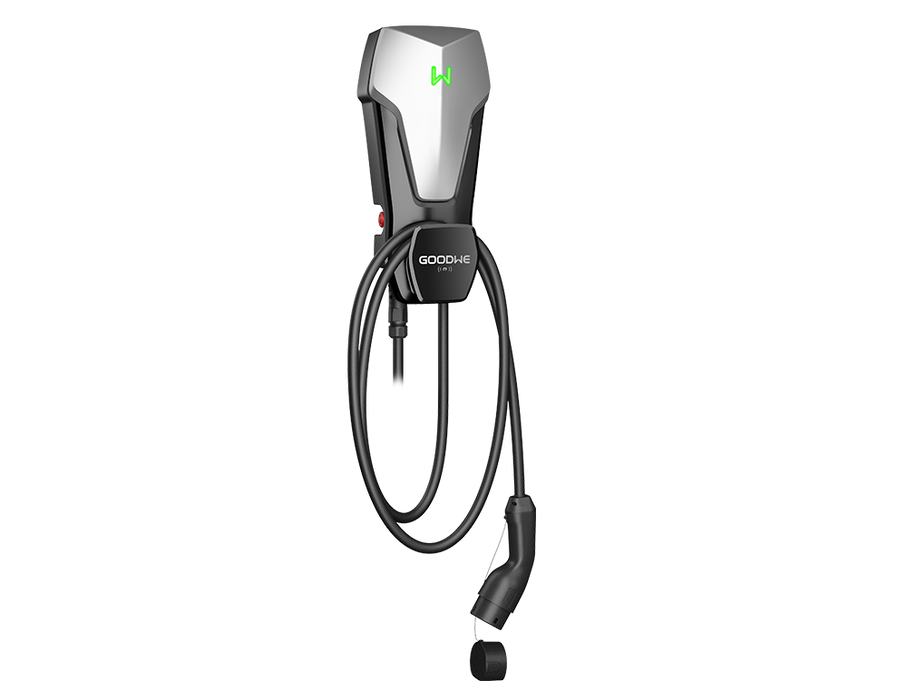

Goodwe GW7K-HCA-20 EV charger, side view showing the emergency stop button
Goodwe GW7K-HCA-20 7kW single phase EV charger with tethered Type 2 cable, front view

Goodwe GW7K-HCA-20 7kW Single Phase EV Charger

SKU 12300 by GOODWE EV Charger

The Goodwe GW7K-HCA-20 is a 7kW single-phase AC EV charger from the HCA G2 series, fitted with a tethered IEC Type 2 charging cable. It works with compatible Goodwe inverters, including the ESA series, to charge from surplus solar or from solar plus battery, and can also fast charge from the grid or run to a schedule, all managed in the Goodwe SEMS+ app. Charging starts by app, RFID card or automatically on plug-in, and the IP66 body suits indoor or outdoor installation on a wall or the optional stand.

Key specifications

  • Rated output: 7kW, 230V single-phase, 32A
  • Cable: tethered IEC Type 2, 7.5m
  • Charging modes: fast charging, PV priority, PV plus battery, scheduled charging, dynamic load control
  • Start methods: app, RFID card or auto start; 2 x RFID cards supplied
  • Communication: WiFi, Bluetooth, LAN and 2 x RS485; Modbus TCP
  • Protection: IP66 body (IP55 plug), residual current detection AC 30mA + DC 6mA, Type III AC surge protection, emergency power off; an external Type A RCD is required
  • Operating range: -30 to +50°C
  • Dimensions and weight: 208 x 450 x 170mm, 5.6kg with 7.5m cable
  • Certifications: IEC 61851-1, IEC 62955, IEC 62311, AS/NZS 4268:2017
  • Model: GW7K-HCA-20

Suits

Home EV charging on single-phase supplies, including solar charging with compatible Goodwe inverters such as the ESA and ET series.

Datasheet (PDF)
Dimensions and packing
208 x 450 x 170 mm
5.6kg
Manufacturer SKU
GW7K-HCA-20
