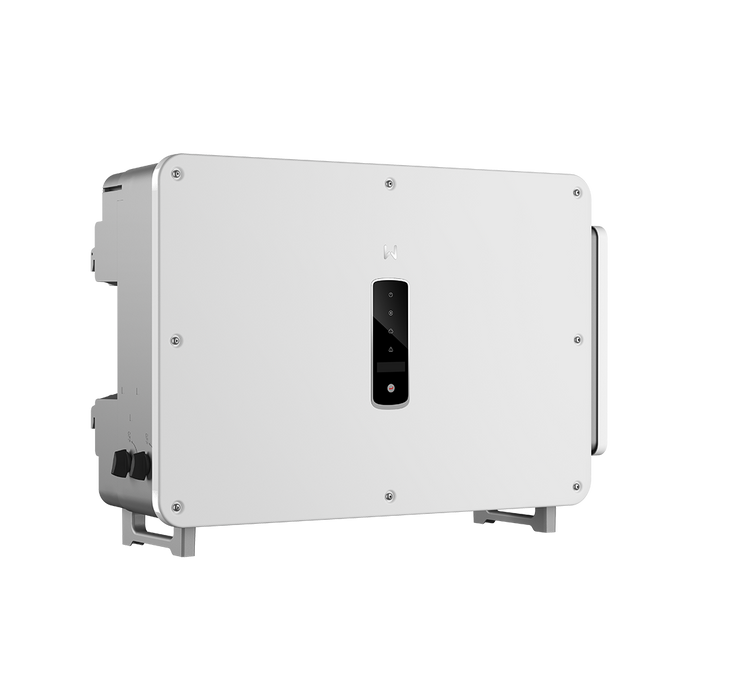

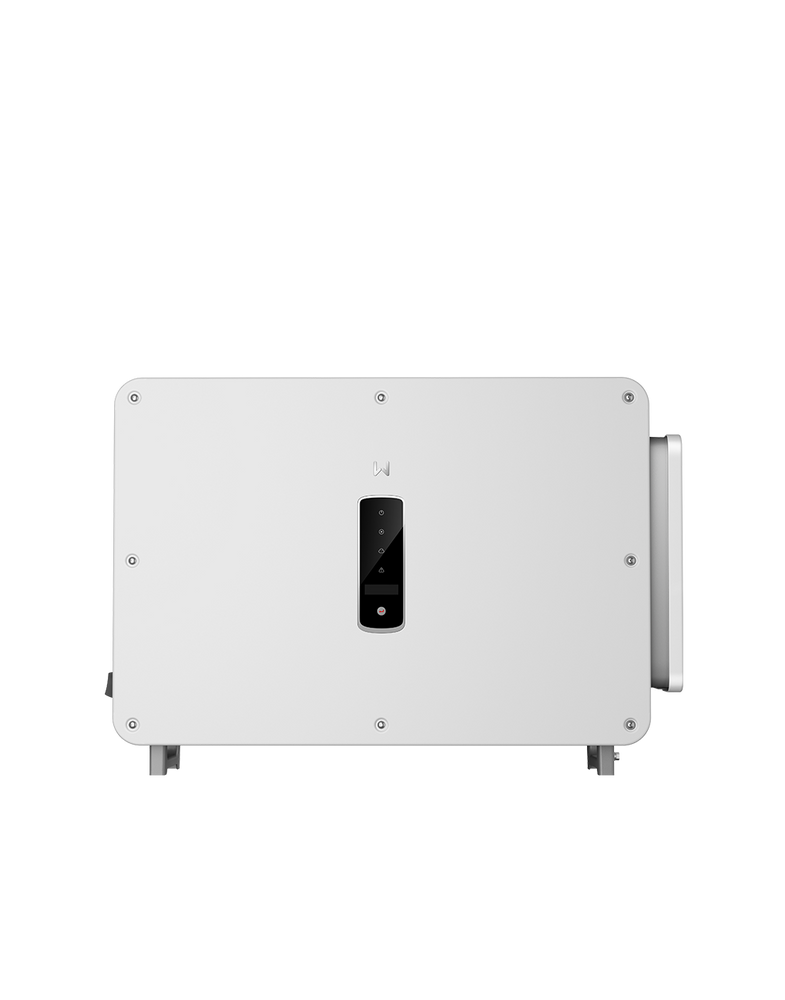

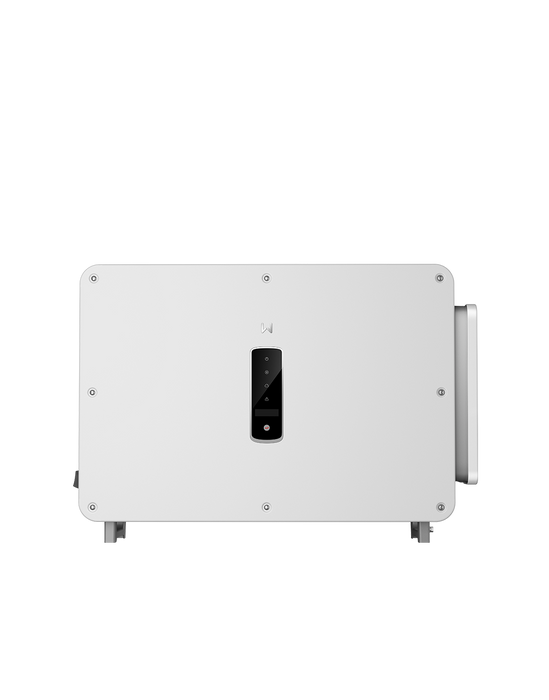

The Goodwe GW110K-GT is a 110 kW three-phase grid-tied string inverter aimed at commercial and industrial rooftop and ground-mount arrays. Ten independent MPP trackers with two strings each (twenty strings total) and 1100 V DC input enable high-flexibility design across uneven roofs and shaded sub-arrays, while string-level current monitoring simplifies fault diagnosis. With a peak efficiency of 98.8%, IP66 protection, and a relatively light 88 kg chassis, it is well suited to Australian commercial and industrial installations operating up to 60 degrees Celsius ambient.
Key Features
- 110 kW three-phase grid-tied string inverter, AU max output current 159.5 A
- Ten MPP trackers, two strings per MPPT (twenty strings total), 42 A max input per MPPT
- Max DC input 1100 V, MPPT operating range 180 to 1000 V
- Max efficiency 98.8%, European efficiency 98.4%
- IP66 protection, operating range -30 to +60 degrees Celsius
- Integrated DC switch, PV insulation, RCD, anti-islanding and AC OVP protection
- Built-in string-level monitoring for rapid fault diagnosis
- Optional C5 anti-corrosion coating for coastal sites
Specifications
| Model | GW110K-GT |
| Rated power | 110 kW (3-phase) |
| MPPTs / strings | 10 MPPT / 20 strings |
| Max DC input | 1100 V |
| Max efficiency | 98.8% |
| Protection rating | IP66 |
| Dimensions | 930 x 650 x 300 mm |
| Weight | 88 kg |
Installation Manual: Download from Goodwe Australia (PDF)
