EV Charger Sungrow AC Charger 7/11/22kW, Type 2 Cable, 7M, w/iHomeManager (AC22E-01)
SKU 14547
by SUNGROW
Sold out

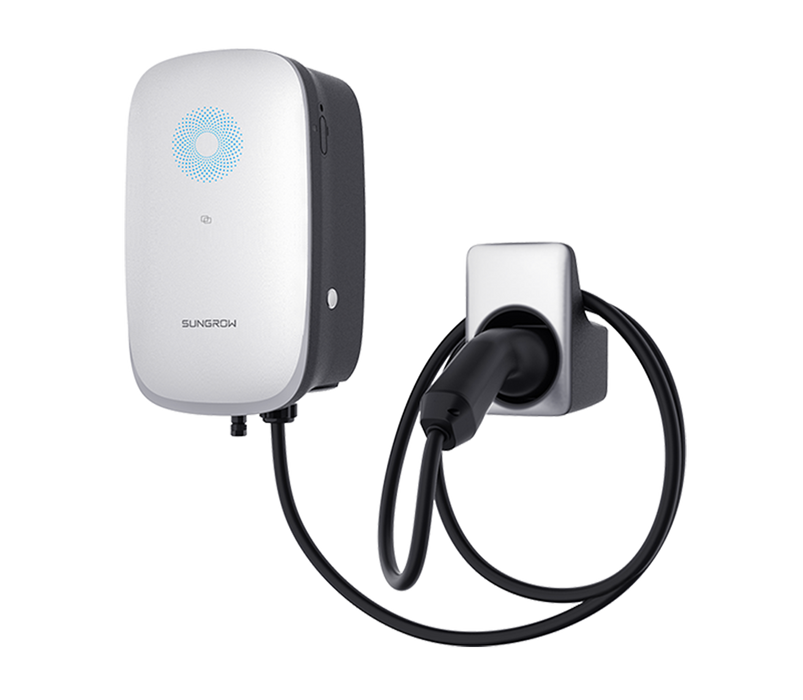

The Sungrow AC22E-01 (7m cable variant) is the extended-reach version of Sungrow's compact, IP65/IK10-rated residential and commercial AC wallbox EV charger. It delivers a configurable 7.4 kW single-phase or 11 kW / 22 kW three-phase output via a tethered Type 2 connector on a 7 metre cable, giving more flexibility for driveway, garage and parking-bay layouts where the vehicle inlet sits further from the wallbox. It pairs with Sungrow SHRT hybrid inverters and the iHomeManager over RS485 to prioritise self-generated solar for EV charging, with smart load management, adaptive phase switching, and OCPP 1.6J support for third-party charge-management platforms.
Key Features
- Flexible power output: 7 kW / 11 kW / 22 kW (configurable)
- Type 2 cable with 7 metre length included
- IP65 all-weather protection and IK10 impact resistance
- Smart load management to prevent peak overload
- Dynamic power allocation for multiple chargers
- OCPP 1.6J certified for third-party integration
- Authentication via RFID card, app, or plug-and-charge
- WiFi, LAN and 4G connectivity
- Includes iHomeManager with 3 x 100A CTs for solar surplus charging
- 6 mA DC fault current detection built in
- Operating range -30 to +50 degrees Celsius
Specifications
| Model | AC22E-01 |
| Max charging power | 22 kW (3-phase) / 7.4 kW (single-phase) |
| Max charging current | 32 A |
| Cable type | Type 2, 7 metre length |
| Protection rating | IP65, IK10 |
| Dimensions | 346 x 214 x 125 mm |
| Weight | Less than 6.65 kg (with cable) |
| Communication | WiFi, LAN, 4G, RS485 |
| Warranty | 3 Years |
