EV Charger Fox Ess A series Multiphase 7/22kW Tethered 7.5M-Cable White w/WiFi/RFID/OCPP/LAN/Bluetooth (7.5m)

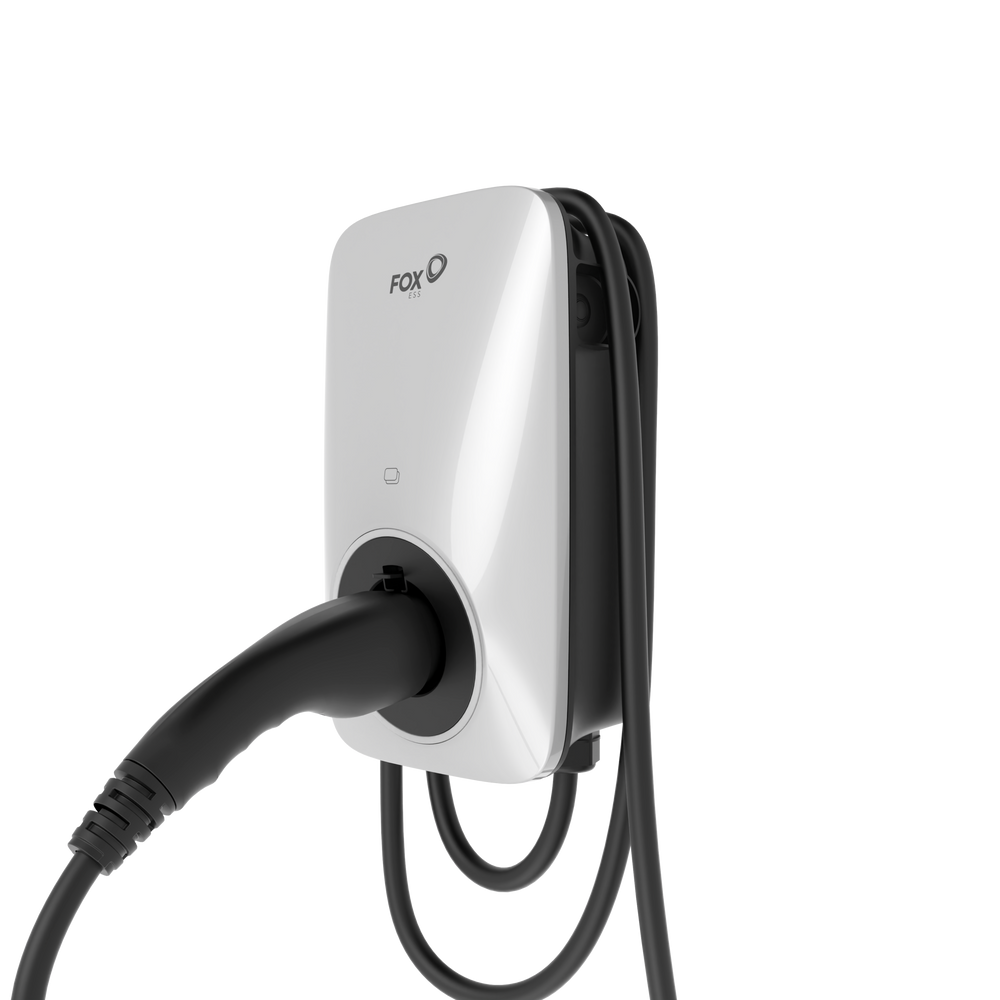

The FOX ESS A-Series A022KP1-E-W is the white finish variant of the A-Series multiphase tethered EV charger. Identical hardware to the black model: auto-handles single-phase 7 kW or three-phase up to 22 kW from a single platform, with a Type 2 tethered cable, OCPP 1.6 JSON / 2.0.1 compliance, and full connectivity (WiFi, Bluetooth, RFID, LAN, optional 4G). The white enclosure suits cleaner architectural installs and lighter render or weatherboard facades. Solar surplus diversion and dynamic load balancing make it a natural pair with FOX ESS hybrid inverters. IP65 body, IK08 impact rating, V2G / ISO 15118 hardware-ready, RCM-certified for Australia.
Note on cable length: Please confirm the cable length supplied with your unit when ordering. The published FOX ESS A-Series datasheet specifies a 6 metre tethered cable.
Key Features
- Multiphase output: up to 22 kW three-phase (400 V) or 7.3 kW single-phase (230 V)
- Tethered Type 2 connector (IEC 62196)
- OCPP 1.6 JSON and OCPP 2.0.1 compliant
- WiFi, Bluetooth, Ethernet LAN, RFID and optional 4G connectivity
- Dynamic load balancing and solar surplus diversion
- V2G / ISO 15118 hardware-ready for future bidirectional charging
- Residual current protection: AC 30 mA + DC 6 mA built in
- IP65 body, IK08 impact rating
- Operating range -30 to +50 degrees Celsius
- RCM-certified for Australia, CE, CB, UKCA
Specifications
| Model | A022KP1-E-W (White) |
| Max charging power | 22 kW (3-phase) / 7.3 kW (single-phase) |
| Max charging current | 32 A |
| Connector | Type 2 tethered (IEC 62196) |
| Protection rating | IP65 (body), IK08 (impact) |
| Dimensions | 190 x 320 x 130 mm |
| Weight | 6.3 kg or less |
| Operating temperature | -30 to +50 degrees Celsius |
| Standards | EN/IEC 61851-1:2019 + 61851-21-2:2021, CE/CB/UKCA/RCM |
